Description

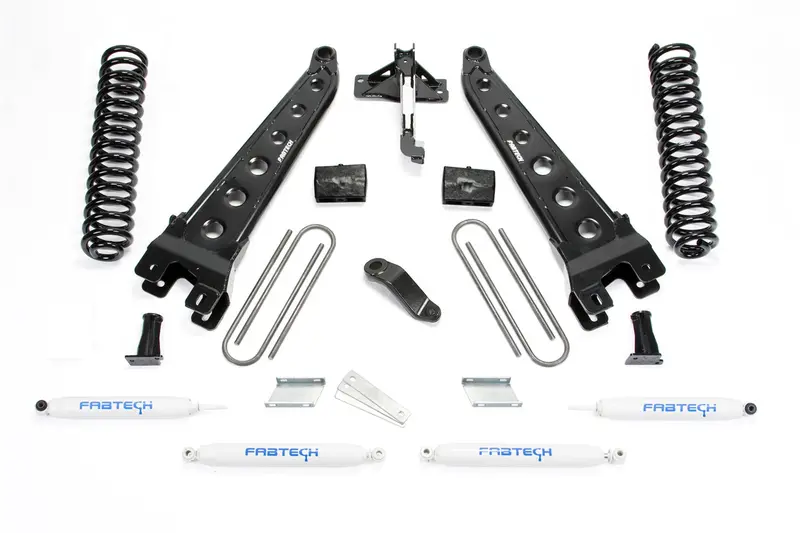

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
Specifications:
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE – 285/70R19.5 WHEEL – 19.5XOEM W/OEM” BS W/OEM DUALLY WHEELS; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL. |
| Description_ASC | TIRE SIZE-285/70R19.5 WHEEL-19.5XOEM W/OEM BS W/OEM DUALLY WHEELS; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 6″ RAD ARM SYS W/COILS & PERF SHKS 2017 FORD F450/F550 4WD DIESEL |
| Description_DES | F450/550 RADIUS ARM BOX |
| Description_DES | F450/550 REAR BOX KIT |
| Description_DES | PERFORMANCE SHOCK |
| Description_DES | Radius Arm Lift System |
| Description_DES | SD 4WD COIL BOX |
| Description_EXT | 6″ RAD ARM SYS W/COILS & PERF SHKS 2017 FORD F450/F550 4WD DIESEL. |
| Description_EXT | Coil Spring Kit; For 6 in. Lift; For PN[K2282/K2282M/K2282DL/K2284/K2284M/K2284DL]; |
| Description_EXT | Performance Shock; For PN[K2011/K2050/K2052/K2054/K2156/K2157/K2155/K2132/K2131/K2130/K2010/K2118/K2119/K20132/K20101/K20102/K20111/K20112/K2257/K2013]; |
| Description_EXT | Performance Shock; For PN[K2011/K2086/K2087/K2115/K2025/K2026/K2050/K2052/K2054/K2084/K2116/K3039/K3033/K3035/K3036/K5001/K5000/K3043/K3041/K3040]; |
| Description_EXT | Radius Arm Lift System; 6 in. Lift; Incl. Coils And Performance Shocks; |
| Description_EXT | Radius Arm Lift System; For 6 in. Lift; For PN[K2282/K2282M/K2282DL/K2283DL]; |
| Description_EXT | Rear Block; For 6 in. Lift; For PN[K2282/K2282M/K2282DL/K2283DL/K2284/K2284M/K2284DL/K2285DL]; |
| Description_FAB | Adjustable Alignment Cam Allows Caster Adjustment |
| Description_FAB | Dimple Die Side Plates |
| Description_FAB | Fully Tubular Structure |
| Description_FAB | Patent Pending Radius Arms |
| Description_FAB | Unsurpassed Strength And Performance |
| Description_INV | Fabtech-6″ RAD ARM SYS W/COI |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech’s 6in Radius Arm system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle’s suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. This Radius Arm system is a complete upgrade to the factory suspension and will provide additional strength for use with oversized tires. High quality components with properly designed suspension geometry is what sets this system apart from all other Radius Arm suspensions. The Radius Arms use tubular construction with dimple die side plate for superior strength. American made coil springs have been designed for a very compliant ride quality both on and offroad. 1/4in thick steel bracketry repositions the factory track bar to center the axle under the vehicle with the increased lift height. The Dropped Pitman Arm uses forged steel construction with high strength material that exceeds the factory specifications. 1/4in thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range. Brake Line Brackets reposition the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact. Steering Stabilizer Brackets retain the factory F450 or F550 long travel steering stabilizer with a 1/4in thick steel bracket and support brace to help reduce tire shimmy. Steel rear lift blocks replaces the factory blocks for additional lift without changing the ride quality or load carrying capacity. American made U-Bolts designed to attach the entire rear differential to the vehicle. Extended length twin tube Performance shocks provide a good highway ride with the ability to handle offroad use. |
| Description_MKT | Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit. |
| Description_SHO | 6″ RAD ARM SYS W/COI |
| Description_SHO | LftKt-Suspw/Shock |
| height | 14.5 |
| length | 45.5 |
| Lift/Drop Height | 6 in. |
| LTL | N |
| Title | Fabtech 6″ RAD ARM SYS W/COILS & PERF SHKS 2017 FORD F450/F550 4WD DIESEL |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 271.0 |
| width | 39.52 |
